| PPRP-4055 series remote control console |
PPRP-4055 series remote control console is compatible with PVDP-1006 and PVDP-1007 multistandard video-audio processors, PDMX-2006 and PDMX-2007 video-audio switchers. PPRP-4055 provides up to four GPI commands and RS-485/RS-232 connectivity to supported devices.
Technical specifications
- RS-485 serial bidirectional link:
- 9600 bps data rate
- 11 bits word length (one startbit, eight data bits, one programmable bit, one stopbit), halfduplex
- PROFITT's proprietary protocol
- up to 300 meters of cable run
- number of supported nodes:
- up to fifteen in the "bus" network topology
- up to 132 in the "hub" hierarchical network (up to 13 hubs required)
- RS-232 serial bidirectional link:
- 9600 bps data rate
- 10 bits word length (one startbit, eight data bits, one stopbit), halfduplex
- PROFITT's proprietary “5566” protocol
- up to 15 meters cable run
- GPI commands
- four groups of Input/Output signals
- a group consists of one normally-open, one normally-closed contact and an input to control a LED in a button
- "open collector" output type
- maximum output voltage – 18v
- maximum output current – 20mA
- General info
- supply voltage: 5V
- power consumption: less than 5W
- dimentions: 44õ482õ55 mm
- weight: less than 1 kg
General description
PPRP-4055 console is a 1U rack-mountable module easily convertible into a desktop one.
PPRP-4055 frontal panel
The frontal panel hosts ten buttons for video-audio mixer/processor(s) management and four buttons for GPI command lines:
- IN1…IN6 – select an input for the PGM bus of a mixer/processor. The actual transition is performed in a preprogrammed way (CUT, MIX or V)
- LOGO – logo insertion ON/OFF. A mixer/processor must be preconfigured to enable logo generator (LOGO PRG ON/OFF set to ON) at the mixer/processor's PGM output
- LINE – preselected instance of a scrolling text insertion ON/OFF. A mixer/processor must be preconfigured to enable logo generator (LOGO PRG ON/OFF set to ON) at the mixer/processor's PGM output
- DSK – DSK signal ON/OFF at the PGM bus
- CONFIRM – an auxiliary button used to prevent operator's erroneous actions (if a protected mode is enabled) and for PPRP-4055 console's RS-485 network configuration
- RESET – resets to factory default settings
- GPI1…GPI4 – GPI line control and status display
The rear panel hosts:
- +5V power supply connector
- combined RS-232/RS-485 interface connector labeled RS-232
- RS-485 network connector
- four GPI line connectors
- OPTION preset switch
PPRP-4055 connects to a controlled device by either RS-232 or RS-485 links.
Two RS-485 network topologies are available: the "bus" (fig.2a) and "hub" (fig.2b). In the latter case the HUB concentrator is needed. Each networked device is assigned it's own address and uses the "PROFITT"'s proprietary protocol.

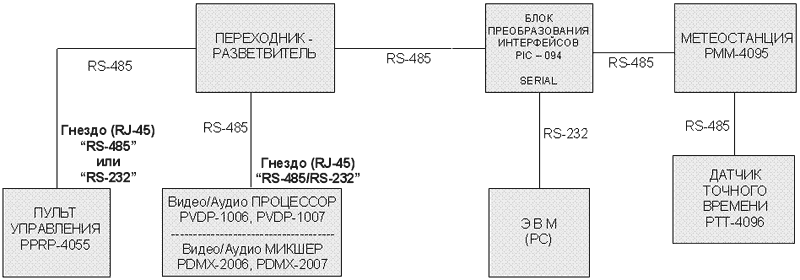

RS-485 "bus" topology application example

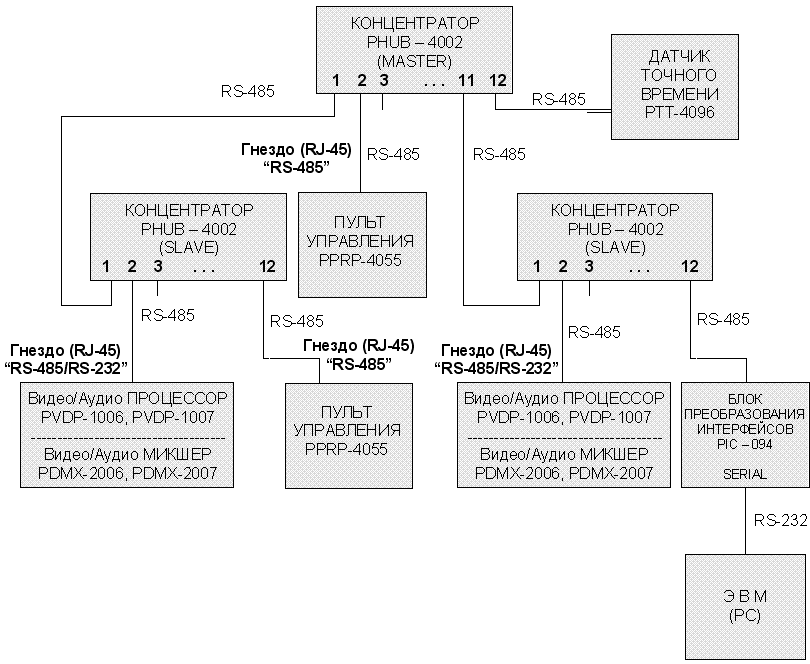

RS-485 "hub" topology application example
RS-232 connectivity application examples

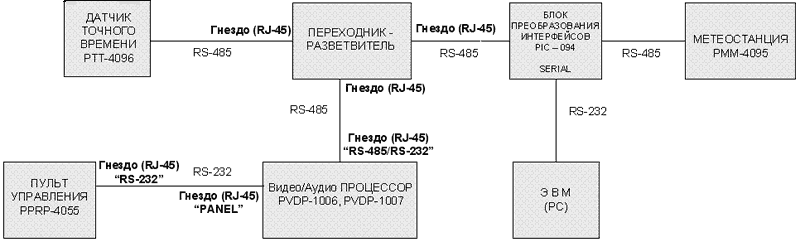

An application example of RS-232 control with RS-485 network connectivity

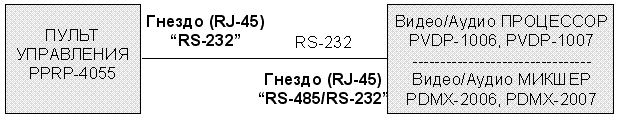

Direct RS-232 connection application example
|
